30 INCH JennAir JED3430GB Electric DOWNDRAFT Cooktop * NEW Open Box Ceramic Glass Surface , Dual Choice Element JX3 Downdraft Ventilation System Dura Finish Glass Protection Die-Cast Metal Knobs , ADA , Prop 65 UL Listed , Black

Brand :
JENNAIR

Model :
JED3430GB

Type :
30 Inch Electric Downdraft Cooktop , Ceramic Glass Surface ,
Dual Choice Element JX3 Downdraft Ventilation System ,
Dura Finish Glass Protection , Die-Cast Metal Knobs ,
ADA Compliant , Prop 65 , UL Listed , Black .

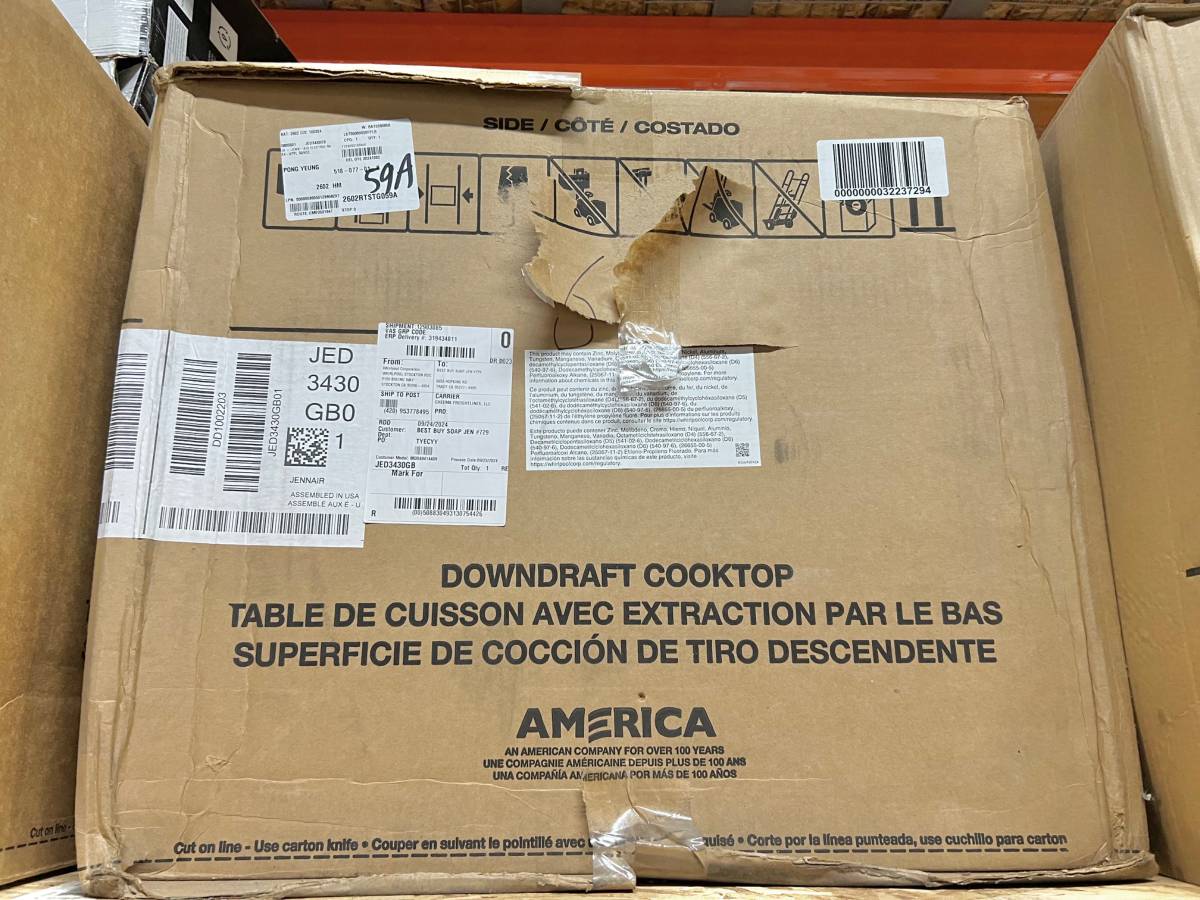

Condition :
New Open Box

MSRP :
$ 2,649

Price :
$ 2,500



*

Sabbath Mode: No
Number of Burners: 4
Style: Smoothtop
Type: Drop-In
Control Type: Knobs
Downdraft Venting: Yes
Actual Width: 30 7/8 Inch
WiFi: No
Simmer Burner: Yes
Power Burner: Yes
Hot Surface Indicator Light: Yes
Induction: No



Features

JX3™ Downdraft Ventilation System with 3 Speeds
Developed and refined by the Jenn-Air brand, a downdraft ventilation system uses proximity ventilation to capture smoke, steam and odors at the cooking surface, whisking them down and out of the kitchen before they can escape.
Perimetric Extraction
This sophisticated design is not only attractive, it is the secret behind the ventilation system's exceptional performance and quiet operation.
10"/6" Dual-Choice™ Element
This two-tiered single element accommodates various-sized cookware in one location and can achieve an output of 3,000 watts when both elements are active.
DuraFinish® Glass Protection
DuraFinish® Glass Protection helps keep your ceramic glass cooktop's surface looking like new by resisting scratching.
Convertible to Duct-Free Ventilation
Keep the view from your kitchen open and free from ductwork with this optional kit that allows conversion to duct-free ventilation.

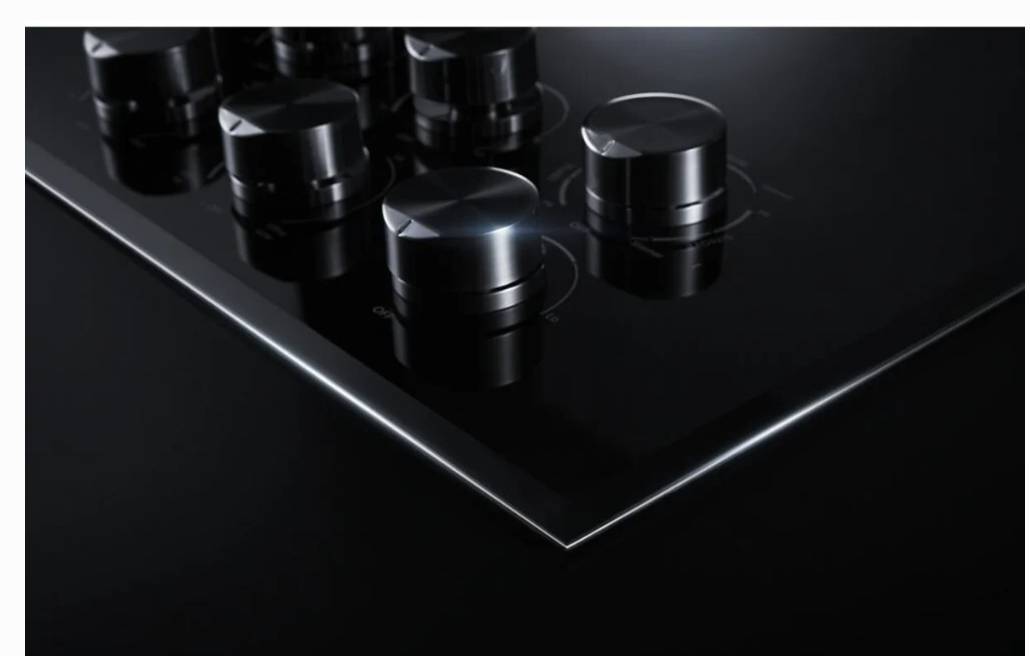

Die-Cast Metal Knobs
Robust, die-cast metal knobs offer precise control and color-coordinate with either the Euro-Style Stainless or Black design of these cooktops.



Specifications

Overview
Design Type: Black Glass
Cooktop Type: Downdraft
Fuel Type: Electric Radiant
Size: 30"
Control Location: Right Side
Controls: Knobs
Infinite Heat Controls: Yes
Knob Color: Black
Knob Type: Metal
Automatic Pan Detection: No
Digital Display: No
Downdraft Vent: Yes
Griddle: No
Heating Element On Indicator Light: Yes
Hot Surface Indicator Light: Yes
Installs Over Built-In Oven: No
LP Convertible: No
Power Boost: No
Power Outage Compatible: No
Selections: Convertible to Duct-Free Ventilation, JX3™ Downdraft Ventilation System with 3-Speed Fan
Cooktop Details
Cooktop Element Style: Radiant
Cooktop Surface Color: Black
Cooktop Surface Material: Ceramic Glass
Number of Cooking Element-Burners: 4
Number of Open Bays: NA
Left Front Element-Burner Power: 3200W
Left Front Element-Burner Size: 10"
Left Front Element-Burner Type: Hyper
Left Rear Element-Burner Power: 1300W
Left Rear Element-Burner Size: 6"
Left Rear Element-Burner Type: Hyper
Right Front Element-Burner Power: 1200W
Right Front Element-Burner Size: 6"
Right Front Element-Burner Type: Single
Right Rear Element-Burner Power: 3000W/1400W
Right Rear Element-Burner Size: 10"/6"
Right Rear Element-Burner Type: Dual-Stacked Burner
CFM Motor Class: 310
Number of Speeds: 3
Certifications
ADA Compliant: Yes
Prop 65: Standard
UL: UL
Electrical Requirements
Amps: 40
Power Cord Included: No
Volts: 220
Dimensions and Weight
Cutout Depth: 21 1/8"
Cutout Width: 28 7/8"
Depth: 22 1/16"
Height: 3 21/32"
Maximum Height: 18 23/32"
Width: 30 7/8"
Carton Depth: 26 7/16"
Carton Height: 23 13/16"
Carton Width: 35 1/8"
Gross Weight: 68 lbs
Net Weight: 56 lbs
Warranty
Parts & Labor: 2 Year Limited
Parts Only: 5 Year Limited (Years 3-5)




Brand: JennAir
Series: Black Floating Glass Series
Model: JED3430GB
Appearance
Fuel Type: Electric
Number of Burners: 4
Style: Smoothtop
Type: Drop-In
Control Type: Knobs
Color: Black
Surface Color: Black
Trim Color: Black
Glass Surface: Yes
Fingerprint Resistant: No
Downdraft Venting: Yes
Dimensions
Actual Width: 30 7/8 Inch
Actual Depth: 22 1/16 Inch
Actual Height: 18 23/32 Inch
Cutout Width: 28 7/8 Inch
Cutout Depth: 21 1/8 Inch
Shabbos Compliance
Sabbath Mode: No
Smart
WiFi: No
Burner
Simmer Burner: Yes
Power Burner: Yes
Burner 1 Output: 3200W
Burner 2 Output: 1300W
Burner 3 Output: 1200W
Burner 4 Output: 3000W/1400W
Electric Cooktop Features
Hot Surface Indicator Light: Yes
Induction: No
Technical Details
ADA Compliant: Yes
LP Conversion: No
Amps: 40
Voltage: 220 Volts
