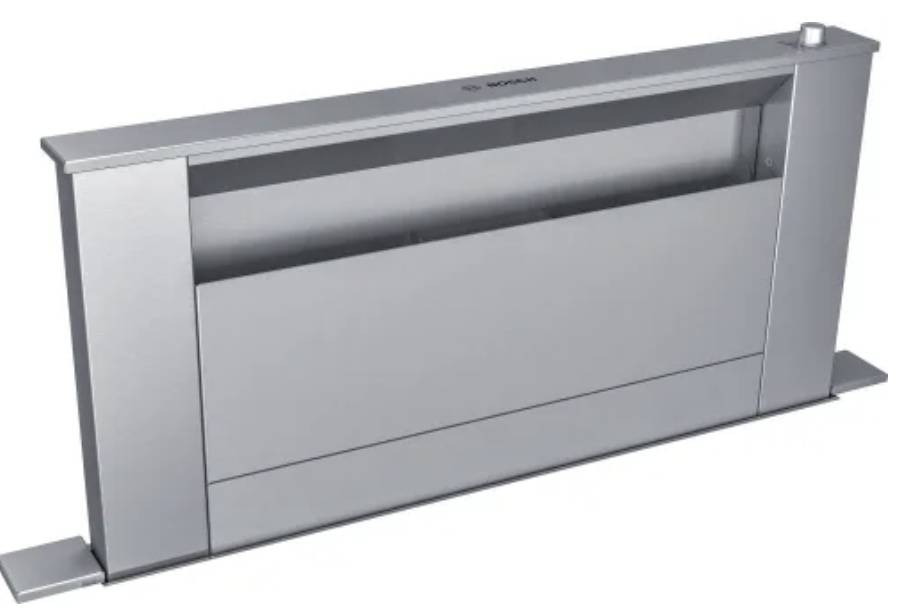

36 INCH Bosch 800 HDD86051UC Convertible Downdraft RANGE Hood * New Open Box * Convertible Downdraft Hood 3-Speed 600 CFM (Blower Sold Separately), Dishwasher Safe Mesh Filters, Integrated Knob Control,  13-Inch Tall Design , Stainless Steel.

Brand :
Bosch 800 Series

Model :
HDD86051UC

Type :

36 Inch Convertible Downdraft Hood 3-Speed,
600 CFM (Blower Sold Separately),
Dishwasher Safe Mesh Filters, Integrated Knob Control,
13-Inch Tall Design , Stainless Steel.

Condition :
New Open Box

MSRP :
$ 2,299

Price :
$ 1,699 !



.

*
Venting Type: Convertible
Blower Included: No
Blower Type: Internal
Width: 37 Inch
Depth: 2 1/4 Inch
Height: 29 3/8 Inch
WiFi: No
Remote Control: No
CFM: 600 CFM
Permanent Air Flow Reduction: Yes
Noise Level: 1.4 Sones
Duct Size: 8 Inch
Number of Fan Speeds: 3
Dishwasher Safe Filters: Yes



Features

Sleek Front Panel Filter Design
Sleek front panel filter design acts as a guard against splatters.
3-Speeds Option
3-speed power level options to suit your cooking style and recipes.
Dishwasher Safe Mesh Filters
Dishwasher safe mesh filters make cleaning and maintenance easy.
Integrated Knob Control
Simple to use to adjust fan speeds.
13-Inch Tall Design
Retracts preserving clean sight lines when not in use.
Additional Features
5 Exhaust connections possible (transition sold separately)
1.4 Low Noise
UL Certified



Specifications

General Properties
Operating Mode:  Convertable: Ducted / Recirculating
Maximum CFM:  Blower sold separately
Sones*:  10.3 HS / 1.4 WS
Number of speed settings:  3-stage
Motor location:  External
Damper included:  No
Grease filter material:  Aluminum
Grease filter type:  Multilayer cassette
Duct direction:  Front, Left, Right, Rear, Down
Optional blower required:  Yes (600 CFM options sold separately)
Technical Details
Volts (V):  120 V
Frequency (Hz):  60 Hz
Plug type:  120V-3 prong
Power cord length (in.):  30"
Dimensions & Weight
Overall dimensions (width of canopy included) (HxWxD):  29 3/8" x 37" x 2 3/4"
Height of the rise (in.):  12"
Diameter of air duct (in.) internal:  8"
Diameter of air duct (in.) external:  6" or 8"
Net weight (lbs):  42 lbs
Accessories - Required
Blower:  (sold separately)
Accessories - Transitions & Blowers
6" side / rear / downward transition:  HDDSTRAN6
8" side / rear / downward transition:  HDDSTRAN8
NOTE:  HDDSTRAN6 or HDDSTRAN8 required for side, rear or downward exhaust applications with inline and remote blowers.
6" round front plate:  HDDFTRAN6
8" round front plate:  HDDFTRAN8
NOTE:  HDDFTRAN6 or HDDFTRAN8 required for front exhaust applications with inline and remote blowers.
Transition for rectangular duct:  HDDSTRAN2
2' rectangular duct:  HDD2RECTD
NOTE:  HDDSTRAN2 needed to attach HDD2RECTD to downdraft. For use with installation of inline or remote blower applications.
600 CFM flexible blower:  DHG602DUC
600 CFM inline blower:  DHG6015NUC
600 CFM remote blower:  DHG6023RUC
Accessories - Optional
HDDREC5UC:  Recirculation kit (compatible with electric, induction and FlameSelect Gas Cooktops)
HDDFILTUC:  Charcoal filter replacement for recirculation kit
HDD6RSP:  36" Gas Cooktop Seal Kit for Downdraft (required for installation with gas cooktops)
HDDTRIM36S:  Trim Kit for 36" FlameSelect® Gas Cooktops



Series: 800 Series
Model: HDD86051UC
Warranty Terms: 1 year
?
Appearance
Type: Downdraft
Color: Stainless Steel
Fingerprint Resistant: No
Venting Type: Convertible
Blower Included: No
Blower Type: Internal
Dimensions
Width: 37 Inch
Depth: 2 1/4 Inch
Height: 29 3/8 Inch
Smart
WiFi: No
Bluetooth: No
Remote Control: No
Smart Accessory Required: No
Capacity
CFM: 600 CFM
Permanent Air Flow Reduction: Yes
Noise Level: 1.4 Sones
Duct Size: 8 Inch
Features
Number of Fan Speeds: 3
Filter Type: Mesh
Dishwasher Safe Filters: Yes
Technical Details
Amps: 10
Voltage: 120 Volts
Approved for Outdoor Use: No
