36 INCH Bosch 800 Series NGM8659UC Built-In Gas Cooktop * NEW * 5 Sealed Burners, FlameSelect, LED Burner Indicator, OptiSim Burner, Dual-Flame Power Burner, Continuous Cast-Iron Dishwasher-Safe Grates ADA Compliant , Stainless Steel .

Brand :
Bosch 800 Series

Model :
NGM8659UC

Type :
36 Inch Built-In Gas Cooktop with 5 Sealed Burners,
FlameSelect, LED Burner Indicator, OptiSim Burner,
Dual-Flame Power Burner, Continuous Cast-Iron Dishwasher-Safe Grates
ADA Compliant , Stainless Steel .


Condition :

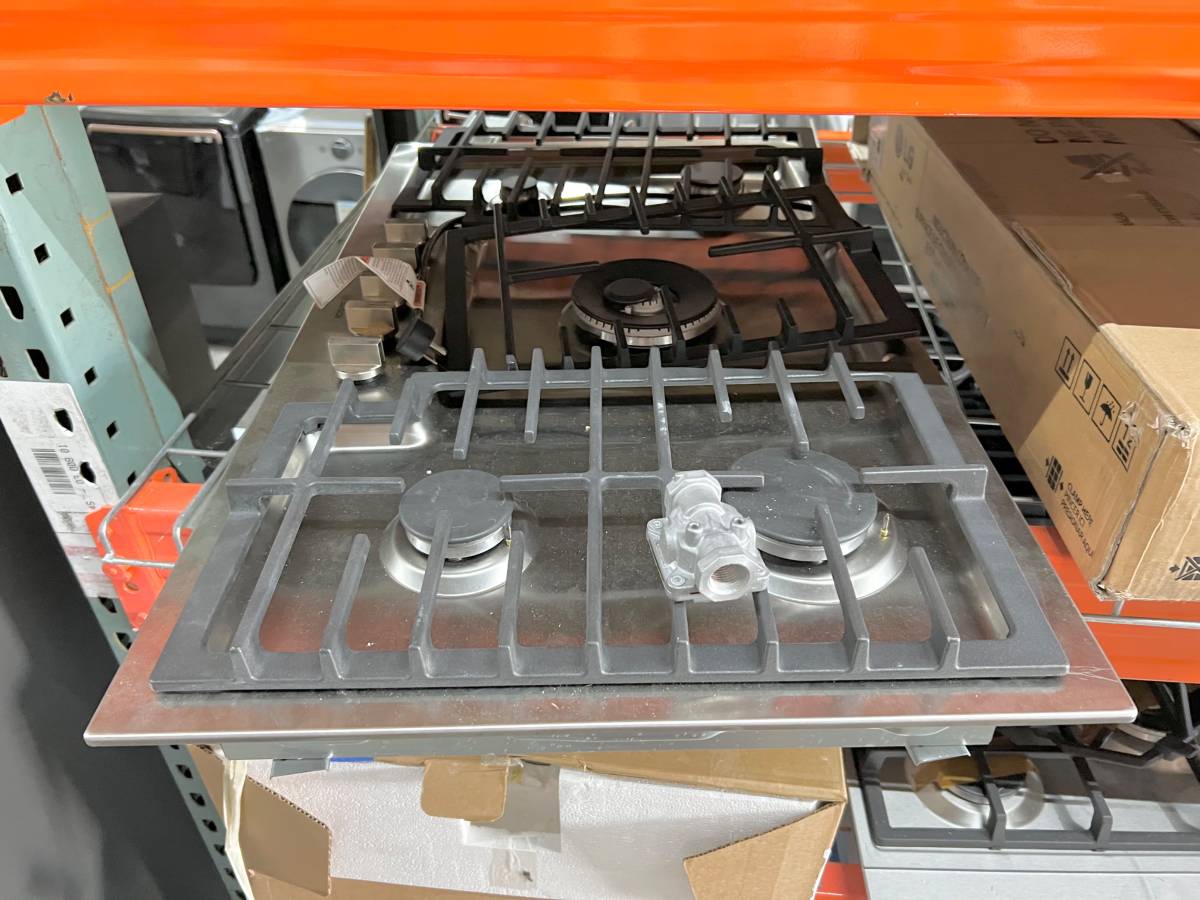

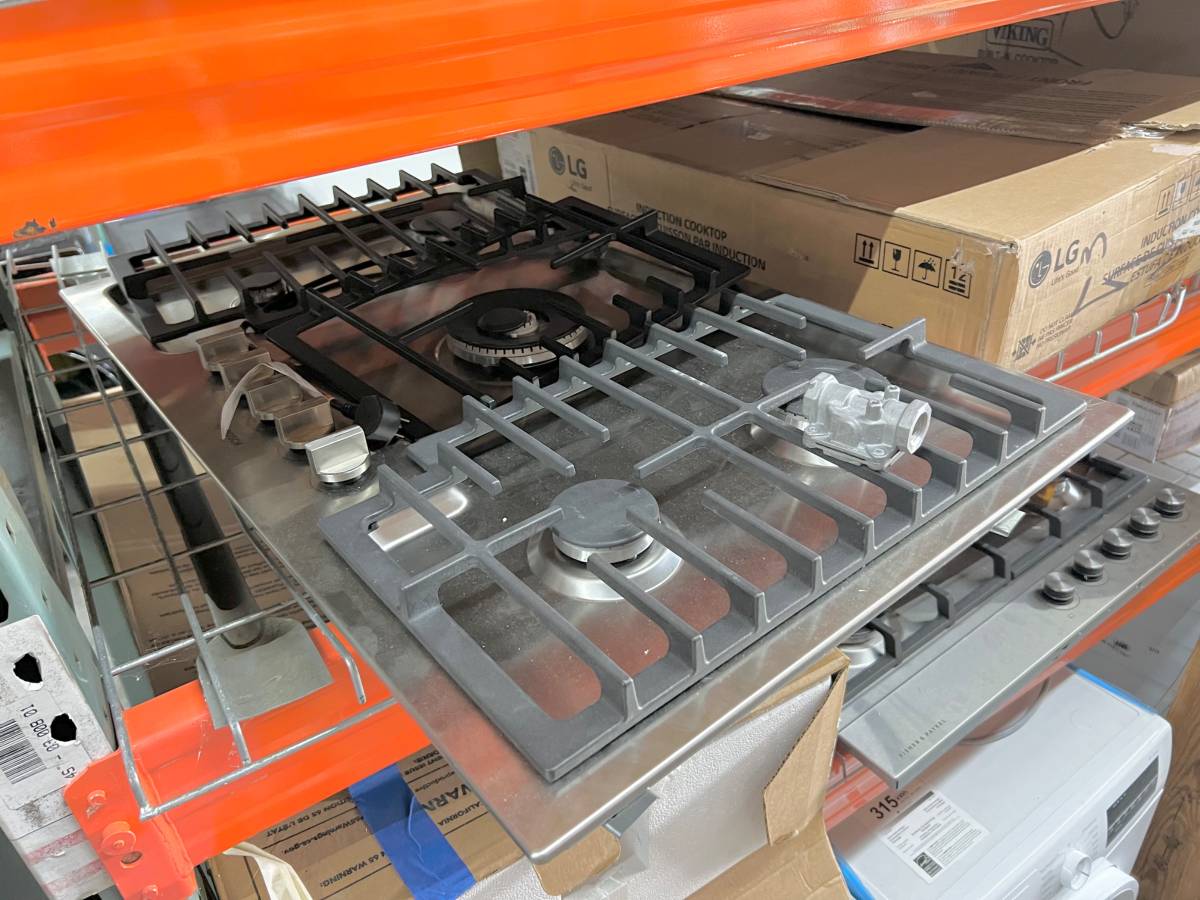

New Open Box

MSRP :
$ 1,899

Price :
$ 1,349 !



.

*


Sabbath Mode: No
Number of Burners: 5
Style: Sealed Burner
Type: Drop-In
Control Type: Knobs
Actual Width: 37 Inch
WiFi: No
Simmer Burner: Yes
Power Burner: Yes
Continuous Grates: Yes




Features

FlameSelect®
Eliminate the guesswork of cooking with FlameSelect®
Introducing FlameSelect® on Bosch cooktops, an entirely new and better way to cook with gas. 9 preset power levels let you easily adjust flame level for more precise, controlled heating.
Whether you're rapidly bringing water to an intense boil or delicately melting chocolate, the numbered flame levels deliver the exact temperature every time.
There's no more hot or cold spots, just precision heating for perfect results.
Dual-Flame Power Burner
Boil water quickly with a Dual-Flame Power Burner.
The dual flame ring power burner has two rings for low and high flame settings so you can go from simmer to sear with ease.
Heat level 1-3 uses the inner ring, and 4-9 uses both rings for maximum heat.
Continuous Cast-Iron Grates
The full-width continuous cast iron grate design makes sliding heavy pots easier around the cooking surface.
Dishwasher-Safe Grates
A special enameling process allows the grates to be washed directly in the dishwasher instead of by hand for easier clean up.
OptiSim® Burner
Simmer delicate sauces with the OptiSim® Burner.
The OptiSim burner design is wider and thicker which diffuses heat evenly for better flame control when simmering delicate sauces.
Show Less
LED Burner Indicator
Sleek Knobs with LED Indicators.
Control knobs with an embedded red LED light line indicate if the burner is on or if there is residual heat.
Easy-to-Clean
The low-profile cooking surface provides a timeless, streamlined look while keeping spills contained and makes clean-up easier than ever.




Specifications

Product Overview
No. of burners: 5
Knob color: Stainless Steel Appearance
Control location: Front-center
Sealed burners: Yes
Valves: Five 9-level gas step valves
Ignition system: Electronic; thermocouple flame monitor control
Cooktop surface material: Stainless steel
Grate material: Cast iron
Grate features: Continuous grates, dishwasher safe
Element Performance
Total BTU load (NG / LP): 42,700 / 41,400
Power of front left burner (NG / LP): 3,400 / 3,400
Power of back left burner (NG / LP): 6,000 / 6,000
Power of center burner (NG / LP): 17,000 / 15,700
Power of back right burner (NG / LP): 10,300 / 10,300
Power of front right burner (NG / LP): 6,000 / 6,000
Technical Details
Circuit breaker: 15 A
Volts: 120 V
Frequency: 60 Hz
Plug type: 3-prong
Power cord length: 40"
Energy source: Natural Gas (factory set)
Convertible to LP: Yes (kit included)
Dimensions & Weight
Overall appliance dimensions (HxWxD): 4 1/2" x 37" x 21 1/4"
Required cutout size (HxWxD): 2" x 34 15/16" x 19 1/8"
Minimum distance from counter front: 1 7/8"
Minimum distance from rear wall: 3"
Net weight: 58 lbs.
Accessories
LP Conversion Kit: Included
OptiSim® Cap: Included
Griddle: HEZ9GR58UC (Optional, sold separately)
Wok Ring: HEZ298102 (Optional, sold separately)




Series: 800 Series
Model: NGM8659UC
Warranty Terms: 1 year
?
Appearance
Fuel Type: Gas
Fuel Subtype: Natural Gas
Fuel Subtype 2: Liquid Propane
Number of Burners: 5
Style: Sealed Burner
Type: Drop-In
Control Type: Knobs
Controls Location: Front
Color: Stainless Steel
Surface Color: Stainless Steel
Dimensions
Actual Width: 37 Inch
Actual Depth: 21 1/4 Inch
Actual Height: 4 1/2 Inch
Cutout Width: 34 15/16 Inch
Cutout Depth: 19 1/8 Inch
Shabbos Compliance
Sabbath Mode: No
Smart
WiFi: No
Burner
Simmer Burner: Yes
Power Burner: Yes
Burner 1 Output: 3400 NG / 3400 LP
Burner 2 Output: 6000 NG / 6000 LP
Burner 3 Output: 17000 NG / 15700 LP
Burner 4 Output: 10300 NG / 10300 LP
Burner 5 Output: 6000 NG / 6000 LP
Gas Cooktop Features
Continuous Grates: Yes
Dishwasher Safe Grates: Yes
Cooktop Accessory: No Accessory
Technical Details
ADA Compliant: Yes
LP Conversion: Yes
Amps: 15
Voltage: 120 Volts
