36 INCH JennAir ELECTRIC DOWNDRAFT JED3536GS Cooktop * NEW Glasstop 5 Element Burners, Ceramic Glass Surface, Triple-Choice Element, JX3 Downdraft Ventilation System, DuraFinish Glass Protection, Die-Cast Metal Knobs, Prop 65, UL, ADA Compliant , Black .

Brand :
JennAir Euro-Style Series

Model :
JED3536GS

Type :
36 Inch Electric Cooktop 5 Element Burners, Ceramic Glass Surface,
Triple-Choice Element, JX3 Downdraft Ventilation System,
DuraFinish Glass Protection, Die-Cast Metal Knobs, Prop 65, UL, ADA Compliant , Black .

Condition :
New Open Box

MSRP :
$ 2,999

Price :
$ 2,750



Sabbath Mode: No
Number of Burners: 5
Style: Smoothtop
Type: Drop-In
Control Type: Knobs
Downdraft Venting: Yes
Actual Width: 36 5/16 Inch
WiFi: No
Simmer Burner: Yes
Power Burner: Yes
Hot Surface Indicator Light: Yes
Induction: No



Features

JX3™ Downdraft Ventilation System with 3 Speeds
Developed and refined by the Jenn-Air brand, a downdraft ventilation system uses proximity ventilation to capture smoke, steam and odors at the cooking surface, whisking them down and out of the kitchen before they can escape.
Perimetric Extraction
This sophisticated design is not only attractive, it is the secret behind the ventilation system's exceptional performance and quiet operation.
12"/9"/6" Triple-Choice™ Element
This three-tiered element reaches a high of 3,000 watts at its highest setting and can reach a low of 1,050 watts allowing you to experience the ultimate versatility in power levels and heating efficiency, accommodating various-sized cookware.

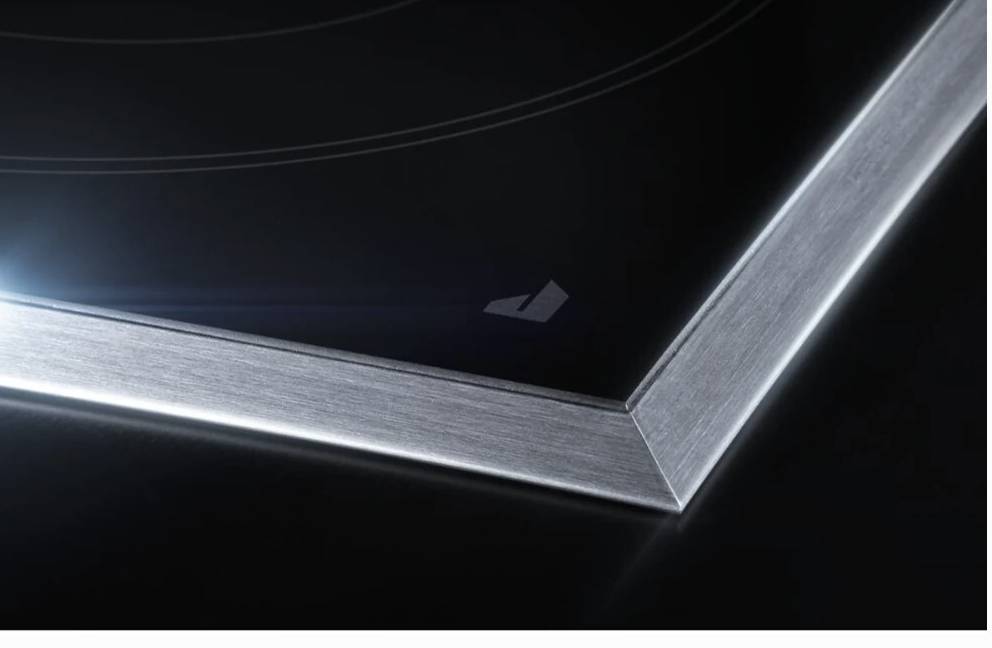

DuraFinish® Glass Protection
DuraFinish® Glass Protection helps keep your ceramic glass cooktop's surface looking like new by resisting scratching.
Convertible to Duct-Free Ventilation
Keep the view from your kitchen open and free from ductwork with this optional kit that allows conversion to duct-free ventilation.
Die-Cast Metal Knobs
Robust, die-cast metal knobs offer precise control and color-coordinate with either the Euro-Style Stainless or Black design of these cooktops.




Specifications

Overview
Design Type: Stainless Steel
Cooktop Type: Downdraft
Fuel Type: Electric Radiant
Size: 36"
Control Location: Right Front
Controls: Knobs
Infinite Heat Controls: Yes
Knob Color: Stainless Steel
Knob Type: Metal
Automatic Pan Detection: No
Digital Display: No
Downdraft Vent: Yes
Griddle: NA
Heating Element On Indicator Light: Yes
Hot Surface Indicator Light: Yes
Installs Over Built-In Oven: No
LP Convertible: No
Power Boost: No
Power Outage Compatible: No
Selections: Convertible to Duct Free Ventilation,JX3™ Downdraft Ventilation System with 3-Speed Fan
Cooktop Details
Cooktop Element Style: Radiant
Cooktop Surface Color: Black
Cooktop Surface Material: Ceramic Glass
Number of Cooking Element-Burners: 5
Number of Open Bays: NA
Center Front Element-Burner Power: 3200W
Center Front Element-Burner Size: 10"
Center Front Element-Burner Type: Single
Center Rear Element-Burner Power: 1200W
Center Rear Element-Burner Size: 6"
Center Rear Element-Burner Type: Single
Left Front Element-Burner Power: 1300W
Left Front Element-Burner Size: 6"
Left Front Element-Burner Type: Hyper
Left Rear Element-Burner Power: 1800W
Left Rear Element-Burner Size: 8"
Left Rear Element-Burner Type: Single
Right Rear Element-Burner Power: 3000W/1950W/1050W
Right Rear Element-Burner Size: 12"/9"/6"
Right Rear Element-Burner Type: Triple
CFM Motor Class: 310
Number of Speeds: 3
Certifications
ADA Compliant: Yes
Prop 65: Standard
UL: UL
Electrical Requirements
Amps: 40
Power Cord Included: No
Volts: 220
Dimensions and Weight
Cutout Depth: 21 1/8"
Cutout Width: 34 9/16"
Depth: 22 1/16"
Height: 3 11/16"
Width: 36 5/16"
Carton Depth: 26 7/16"
Carton Height: 23 13/16"
Carton Width: 41 1/2"
Gross Weight: 82 lbs
Net Weight: 69 lbs
Warranty
Parts & Labor: 2 Year Limited
Parts Only: 5 Year Limited (Years 3-5)




Appearance
Fuel Type: Electric
Number of Burners: 5
Style: Smoothtop
Type: Drop-In
Control Type: Knobs
Color: Black
Surface Color: Black
Trim Color: Stainless Steel
Glass Surface: Yes
Fingerprint Resistant: No
Downdraft Venting: Yes
Dimensions
Actual Width: 36 5/16 Inch
Actual Depth: 22 1/16 Inch
Actual Height: 3 11/16 Inch
Cutout Width: 34 9/16 Inch
Cutout Depth: 21 1/8 Inch
Shabbos Compliance
Sabbath Mode: No
Smart
WiFi: No
Burner
Simmer Burner: Yes
Power Burner: Yes
Burner 1 Output: 3200W
Burner 2 Output: 1200W
Burner 3 Output: 1300W
Burner 4 Output: 1800W
Burner 5 Output: 3000W/1950W/1050W
Electric Cooktop Features
Hot Surface Indicator Light: Yes
Induction: No
Technical Details
ADA Compliant: Yes
LP Conversion: No
Amps: 40
Voltage: 220 Volts
